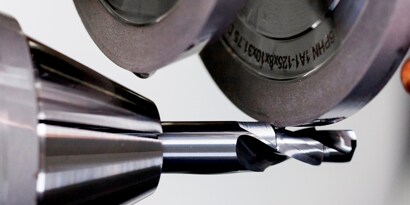

Outside diameter (OD) grinding is one of the most common applications in precision grinding. This grinding process requires choosing the right grinding wheel specifications for your specific application and machine. Partner with 3M and choose from our wide selection of precision abrasives for OD grinding – including conventional abrasives and CBN or diamond superabrasives.

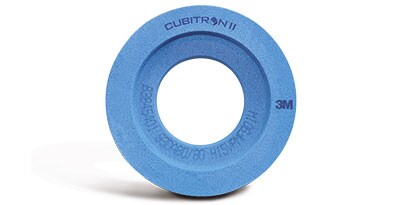

We offer a full selection of conventional abrasives for OD grinding. Choose from ceramic, aluminum oxide and silicon carbide minerals depending on your grinding machine, substrate, material hardness and other factors in your operation.
Our diamond and CBN superabrasives are optimized for cylindrical OD grinding on substrates like hardened steel and superalloys. Available in a range of forms and grades, our superabrasives can be customized to meet your specific application needs.
When exploring a new abrasive wheel for OD grinding, it’s important to understand your current and potential grinding performance. The specific material removal rate, also known under the abbreviation Q’w, indicates how many mm3 are removed per second with a 1 mm-wide wheel. This value allows for a direct comparison between different grinding wheels and grinding processes.
Formula for calculating Q’w
Traverse grinding 〖Q'〗_w=(a_(e ) x n_(w ) x d_w x π)/60
Plunge grinding 〖Q'〗_w=(v_(f ) x d_(w ) x π)/60
To learn more about key OD grinding calculations and formulas, request a grinding booklet today.
