Automotive Masking Solutions for OEM & Tier Suppliers
CONNECT WITH A 3M EXPERT

Effective Auto Masking Tape Solutions Can Help Improve Productivity.

  • Product mock-up example of 3M automotive masking solutions on a red sports car.
    Two-tone Paint Masking

    Bring paint designs to life – we’ll study your process and recommend comprehensive and efficient solutions including products, application methods and overmasking protection.

  • Icon of tape in a circle for 3M plastic part masking
    Plastic Part Masking

    Create sharp paint lines and designed edges efficiently with integrated solutions that include fine line tapes, die cuts, crepe masking tapes and films.

  • Icon of a medics cross in a circle for 3M repair masking.
    Repair Masking

    Details are critical when you need to repair during manufacturing – our masking solutions can help, including critical windshield flange masking.


Two-tone Paint Masking: Balancing Perfection and Speed

More and more customers demand customized vehicles, including two-tone car paint. Undermask and you spend time removing paint, overmask and you have to go back and repaint spots. To keep costs down you need to get it right quickly and efficiently. You also need to understand your process and decide whether to paint the entire body first or just one half. 3M can help by collaborating with you to find solutions that save time and money.

A folded masking film is pre-taped on one edge, then unfolded, and all edges must be taped down to prevent flapping in the wind of the bake over. These films are specially engineered to withstand the heat of paint curing ovens without melting or ghosting the underlying clearcoat, and masking and fine line tapes are designed for clean one-piece removal after exposure to a bake cycle.

  • Product application image of the body of a car for 3M paint body and bake.

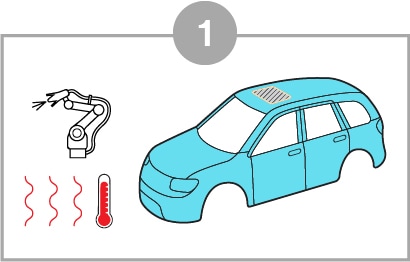

    Paint Body and Bake

    Painting the entire body one color first has the advantage of making the roof paint slightly thicker so water will flow away rather than pool at a paint ridge. The speed required on the production line may mean that after baking further masking is done while the vehicle is still warm.

  • Product application image of the body of a car top with masking film for 3M mask front & windshield

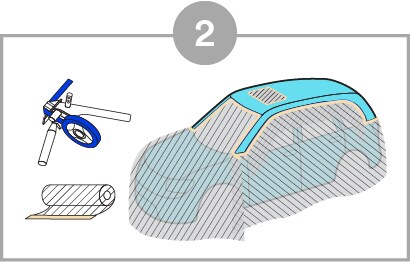

    Mask Front and Windshield

    Apply pre-taped masking film 3M™ High Temperature Paint Masking Film 7300 to the front of the vehicle, windshield, and sunroof. While applying, open the masking film out, making sure to secure it with 3M™ Performance Masking Tape 2380.

  • Product application image of a back of an open truck showing 3M mask back hatch application.

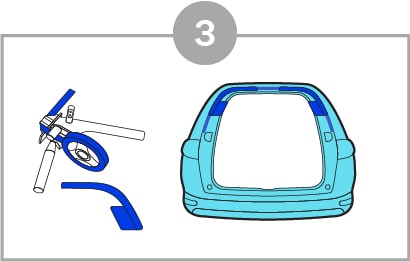

    Mask Back Hatch

    Rear hatches have more complex shapes, making applying by hand hard to do consistently. Die-cuts of Scotch™ High Temperature Fine Line Tape 4737 can be made to match these complex shapes, with tabs to make placement consistent and easy.


  • Product application image of a man putting 3M masking tape on a vehicle.
    On-site Process Support from 3M

    With experts around the world, our Global Automotive Masking team can come to your site to make recommendations and ensure your creative paint designs work all the way down the line. Our collaborative solutions are designed specifically for OEM applications and processes to help save time and reduce expenses while bringing your creative vision to life.

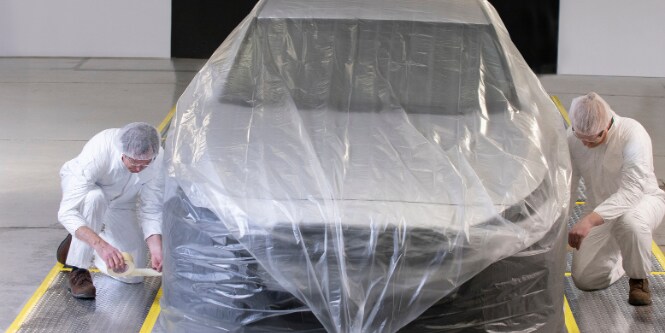

  • High temperature masking film used on vehicle
    3M™ High Temperature Paint Masking Film 7300

    A masking film needs to be gentle on the underlying surface as well as covering it. This product provides excellent conformability and is soft enough to resist scratching the clear coat or other protective layers, yet tough enough to resist temperatures as high as 310°F/155°C for 1 hour during paint cycles.


How Tos

  • Video still with text “Wipe tape down with 3M Plastic Applicator PA-1” as being used on window edge

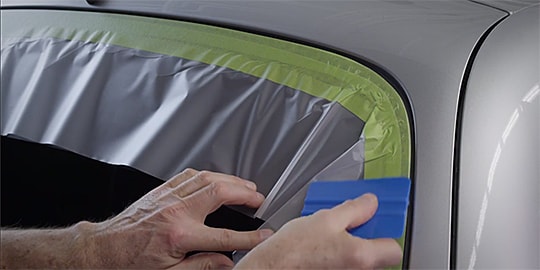

    How to Create an Outside Curve Tape Line with Masking Tape (1:18)

    See the technique for applying masking tape to an outside corner to ensure complete masking before adding a taped masking film.

  • Text “Put pressure on entire width of crepe paper tape while stretching it” as worker use it

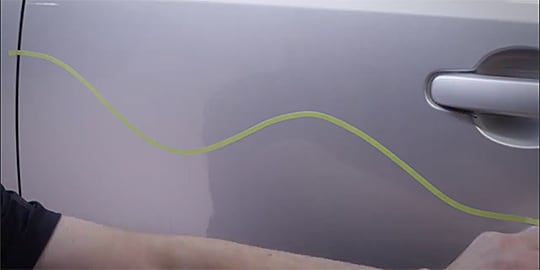

    How to Create an Inside Curved Tape Line with Masking Tape (1:46)

    See the techniques for applying a narrow masking tape to create a series of curves and a wide masking tape to mask gradual curves.


Product Solution for Repair and Plastic Part Masking

Whether you’re masking plastic parts or making paint repairs on the line, the right mix of products and processes helps your workforce expertly and efficiently create sharp paint lines and designed edges. 3M masking products are engineered to stick firmly to many different substrates, survive the heat of the bake cycle and then remove cleanly to help keep your production efficient.

Masking Tapes

Masking Tapes

  • Offers a good solvent and water resistance and a good paint anchorage.

  • Reliable box sealing tape for medium- to heavy-weight packaging applications.

  • For critical paint masking applications requiring a strong hold. Conformable for easy masking around corners, over contours, and irregular surfaces.

Masking Tape Product Details
Product Product Description Thickness mils (mm)
244 Adhesive transfer resistance and sunlight stability. 100 ° C
3739 With high strength polypropylene film backing and hot melt synthetic rubber-resin adhesive. -

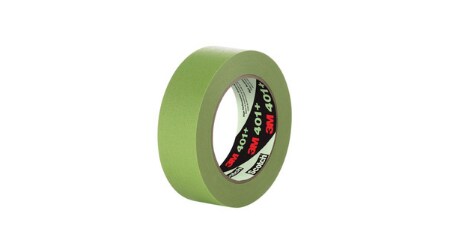

401+ High performance crepe for medium temp bake processes 250°F (121°C)
313 Suitable for hard to stick surfaces and cold temperature applications -
3939 Designed for general heavy-duty indoor MRO/construction applications -
Fine Line Tapes

Fine Line Tapes

  •

  • The polypropylene backing is stiffer than vinyl fine line tapes, while conforming easily around corners. Good moisture and solvent resistance. Used as a layout tape for high value, multi-color and custom painted graphics.

Fine Line Tape Product Details
Product Product Description Thickness mils (mm)

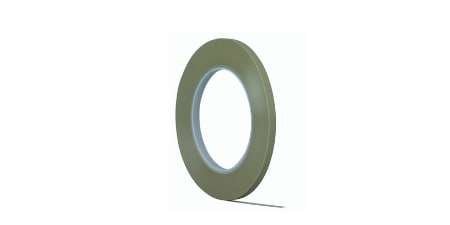

218 Balanced conformablity 250°F (121°C)

Need help finding the right masking solution?

3M is constantly working to meet the evolving challenges of automotive OEM and Tier suppliers worldwide. If you need help finding an existing solution or would like to talk about specific ideas you’re working on, get in touch with us.
